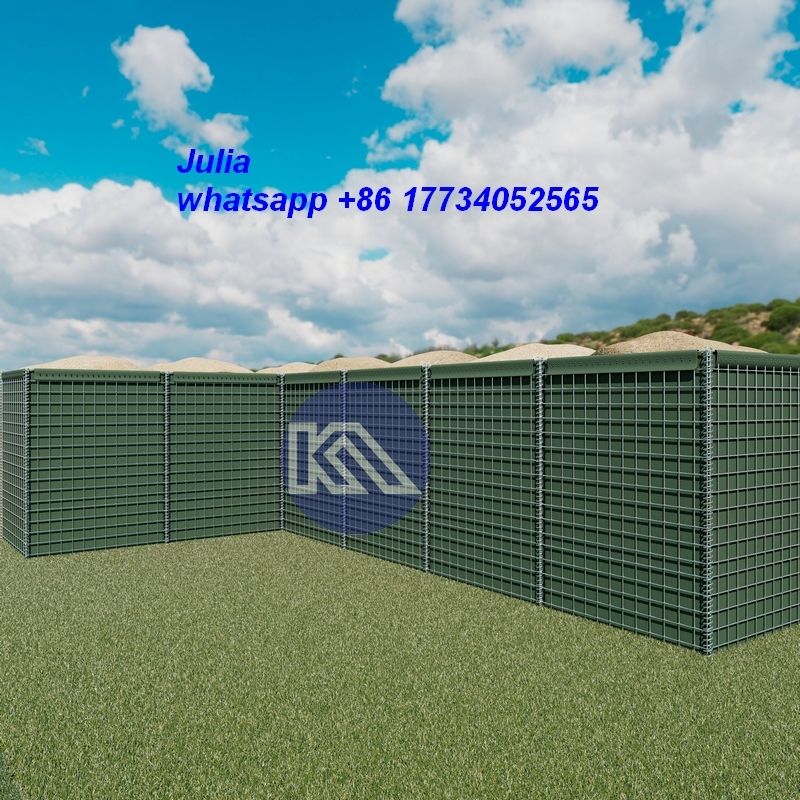

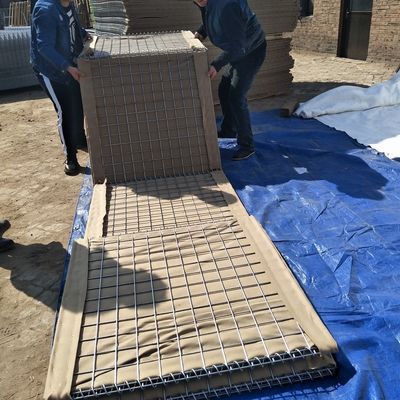

Galvanized Welded Mesh 5mm Wire 300 Gsm Geotextile Lined Earth Filled Military Gabion Box For Army Defensive Barrier
Defensive Barrier is also named as Welded bastion, Welded defense wall, Welded Barrier, Sand Cage, Welded Gabion box, etc. It is a prefabricated, multi-cellular system, made of Galvanized welded mesh and lined with non-woven geotextile. Units can be extended and joined using the provided joining pins. It is easy installed with using minimal manpower and commonly available equipment. After extended, it is filled into sand,stone,then Welded Gabion barrier like a defence wall or bunker,it is widely used for military fortification and flood control.Accessories Supplied With Carrier Units.
Defensive barrier, also known as gabion barrier and defensive bastion, is a new product assembled and sewn from welded gabion mesh and geotextile, which has the ability to resist explosive shock waves and limit the destructive effects of explosions to a certain range. Compared with reinforced concrete explosion-proof walls, it has the advantages of light weight, easy installation, disassembly and recycling.
|
Product Name
|
Defensive bastion
|
|
Product Type
|
Cloth Gabion Barrier defensive bastion bunkers
|
|
Material
|
Galvanized steel wire or Galfan/zinc-5%aluminum wire
|
|
Wire Diameter
|
4.0-6.0mm
|
|
Geotextile
|
250-600g
|
|
Geotextile colour
|
Beige, Green, etc.
|
|
Mesh hole
|
76.2*76.2mm,50*50mm,75*75mm,100*100mm
|
|
More Information
|
For more product information,please contact us,and we have in stock to support customization.
|
operational principle
It is made of galvanized welded mesh, spring with other fittings, canbe filled with sand,earth,cement, stone, can be used in separate cell or some cells joint together.
Quick Details
Defensive Barrier Specification
| Model |
Height |
Width |
Length |
Internal Cells |
| KN-1 |
54”(1.37m) |
42”(1.06m) |
32’9”(10m) |
5+4=9 cells |
| KN-2 |
24”(0.61m) |
24”(0.61m) |
4’(1.22m) |
2 cells |
| KN-3 |
39”(1.0m) |
39”(1.0m) |
32’9”(10m) |
5+5=10 cells |
| KN-4 |
39”(1.0m) |
60”(1.52m) |
32’9”(10m) |
5+5=10 cells |
| KN-5 |
24”(0.61m) |
24”(0.61m) |
10’(3.05m) |
5 cells |
| KN-6 |
66”(1.68m) |
24”(0.61m) |
10’(3.05m) |
5 cells |
| KN-7 |
87”(2.21m) |
84”(2.13m) |
91’(27.74m) |
5+4+4=13 cells |
| KN-8 |
54”(1.37m) |
48”(1.22m) |
32’9”(10m) |
5+4=9 cells |
| KN-9 |
39”(1.0m) |
30”(0.76m) |
30’(9.14m) |
6+6=12 cells |
| KN-10 |
87”(2.21m) |
60”(1.52m) |
100’(30.5m) |
5+5+5+5=20 cells |
| KN-11 |
48”(1.22m) |
12”(0.30m) |
4’(1.22m) |
2 cells |
| KN-12 |
84”(2.13m) |
42”(1.06m) |
108’(33m) |
5+5+5+5+5+5=30 cells |
| KN-19 |
108”(2.74m) |
42”(1.06m) |
10’5”(3.18m) |
6 cells |
Defensive Barrier Details Specification
1. Wire diameter: 4-5mm
2. Mesh size: 3" (75x75mm,50x50mm)
3. Panel size: 12 type size for any security protection,suddenly burst attacks
4. Geotextile: in heavy duty non-woven polypropylene;
5. Color: Grey and Military Green,Sand color etc.
6. Finish: hot dipped galvanized, Galfan wire.
7. Packing: wrapped with shrink film or packed in pallet
Defensive Barrier Application
1. Environmental Barriers,Flood Barriers, a reliable, easy-to-deploy and robust solution for emergency flood protection or long-term wetland restoration
2. Defensive Barriers: Protecting both military and civilian personnel in dangerous environments demands defensive solutions that are secure, reliable and readily available.
3. Protective Barriers: Protect your workforce,Create a secure refuge for your employees by
providing protection for up to eight people with Accommodation Bunker.
4. Rockface: transforms the highly effective wall into an aesthetically pleasing structure ideal for customer-facing perimeter security where a more benign appearance is required.
Defensive Barrier Features
1. having a Galfan coated steel mesh framework
2. integrated cells to provide internal structural integrity.
3. exceptional strength and structural integrity
4. High tensile and anti-impact capability
5. making transportation efficient and rapid
